HiFi Amplifier Modul 41 V

HiFi Amplifier Modul 41 V; Wega, (ID = 1266448) Ampl/Mixer HiFi Amplifier Modul 41 V; Wega, (ID = 1266449) Ampl/Mixer
HiFi Amplifier Modul 41 V; Wega, (ID = 1266450) Ampl/Mixer
Use red slider bar for more.

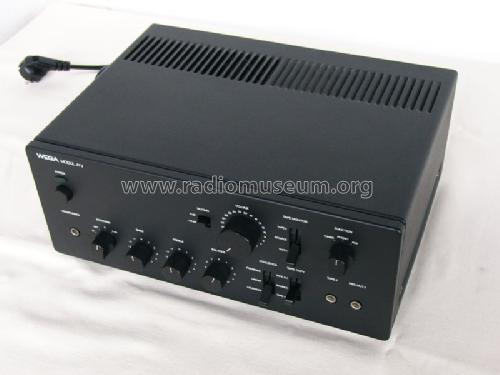

HiFi Amplifier Modul 41 V; Wega, (ID = 1266448) Ampl/Mixer
Wega,: HiFi Amplifier Modul 41 V [Ampl/Mixer] ID = 1266448 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi Amplifier Modul 41 V, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1977 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 140 W (undistorted)
from Radiomuseum.org Model: HiFi Amplifier Modul 41 V - Wega, Württembergische Radio-
Material Various materials
Shape Book-shelf unit.
Dimensions (WHD) 360 x 150 x 260 mm / 14.2 x 5.9 x 10.2 inch
Notes

HiFi-Stereo-Verstärker. 2 x 100 Watt Musikleistung, 0,15 % Klirrfaktor bei 1000 Hz, Frequenzbereich 20 Hz bis 100 kHz. Gehäusefarbe: schwarz oder hellgrau. Weitgehend baugleich mit Wega V3841-2. Es wurde nur die Optik überarbeitet, damit das Gerät zur damals neuen Modul 42-Serie von Wega passte.

Source of data -- Original prospect or advert

Model page created by Gerhard Wickern. See "Data change" for further contributors.
