- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1976/1977
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 134652
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart
Q: Wega, Produkt-Katalog '77

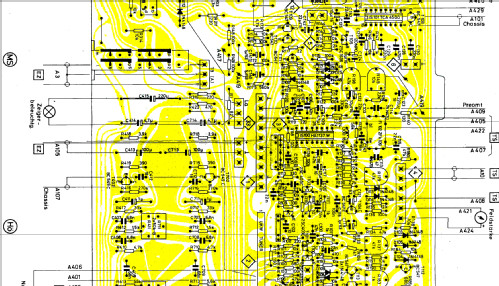

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 40
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 50 W (unknown quality)
- from Radiomuseum.org
- Model: R3140 - Wega, Württembergische Radio-
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 500 x 150 x 340 mm / 19.7 x 5.9 x 13.4 inch
- Notes
- ICs: 2 und 2 Power-Packs.
Wega HiFi-Stereo-Receiver R3140.
Ausgangsleistung: 2× 25 W (Sinus); zwei Lautsprecherboxen L354 im Lieferumfang.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Source of data
- Handbuch VDRG 1976/1977
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
