• Year
  • 1976/1977
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 134653
    • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

 Technical Specifications

  • Number of Transistors
  • 67
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 90 W (unknown quality)
  • from Radiomuseum.org
  • Model: R3141 - Wega, Württembergische Radio-
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 500 x 150 x 340 mm / 19.7 x 5.9 x 13.4 inch
  • Notes
  • ICs: 2 und 2 Power-Packs.

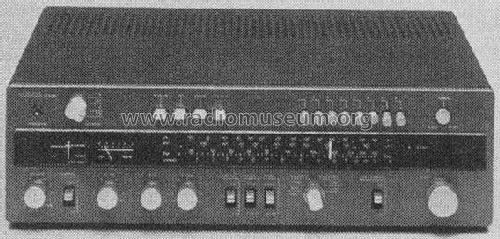

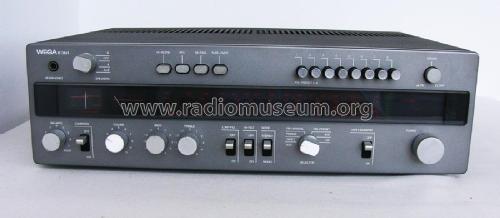

    Wega HiFi-Stereo-Receiver R3141.
    Ausgangsleistung: 2× 45 W (Sinus).
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
