Racksystem 500
Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1979
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 278336
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart
Servicemanual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Other Combination - see Notes
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 140 W (undistorted)
- from Radiomuseum.org
- Model: Racksystem 500 - Wega, Württembergische Radio-
- Notes
-

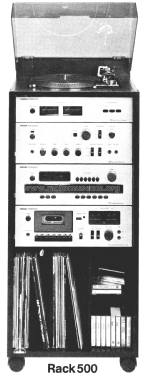

Das Racksystem besteht aus Verstärker A10, Tuner T10, Cassettendeck C5 und Plattenspieler P5 ( Dual941 )
