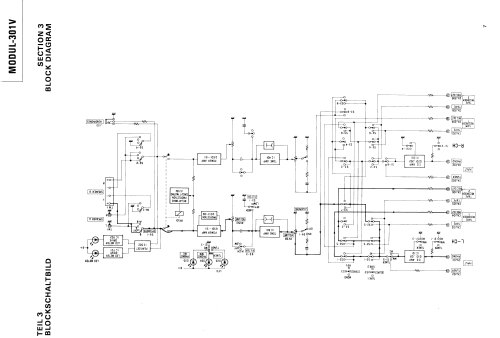

Stereo Amplifier Modul 301V; Wega, (ID = 2020809) Ampl/Mixer
Stereo Amplifier Modul 301V; Wega, (ID = 1352870) Ampl/Mixer Stereo Amplifier Modul 301V; Wega, (ID = 1352866) Ampl/Mixer
Stereo Amplifier Modul 301V; Wega, (ID = 1352868) Ampl/Mixer Stereo Amplifier Modul 301V; Wega, (ID = 1352872) Ampl/Mixer
Stereo Amplifier Modul 301V; Wega, (ID = 1352874) Ampl/Mixer Stereo Amplifier Modul 301V; Wega, (ID = 1635676) Ampl/Mixer
Use red slider bar for more.
Stereo Amplifier Modul 301V; Wega, (ID = 1352870) Ampl/Mixer
Wega,: Stereo Amplifier Modul 301V [Ampl/Mixer] ID = 1352870 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Amplifier Modul 301V, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1981 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 100 W (120 W max.)
from Radiomuseum.org Model: Stereo Amplifier Modul 301V - Wega, Württembergische Radio-
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 70 x 290 mm / 16.9 x 2.8 x 11.4 inch
Notes

WEGA Model 301V.
HiFi-Verstärker mit 2 x 50 Watt (Sinus) an 4 Ohm.
MC und MM-Eingänge für Phono.

Kühlung der Endtransistoren mit 'Heat-Pipe'.

Schaltnetzteil gekapselt liefert +/- 30 Volt Betriebsspannung an die Endstufe.

Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)

Model page created by Gerhard Wickern. See "Data change" for further contributors.
