• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1975–1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 134146

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

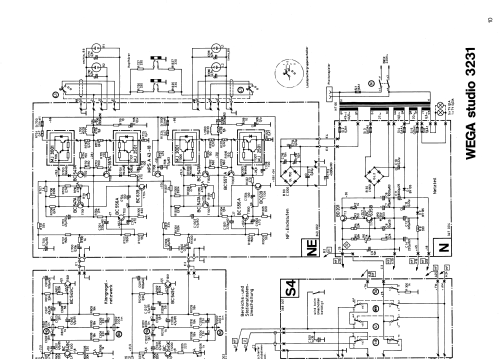

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 27

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• from Radiomuseum.org
• Model: Studio 3231 HiFi [ab Nr. 4001] - Wega, Württembergische Radio-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 670 x 160 x 365 mm / 26.4 x 6.3 x 14.4 inch

• Notes

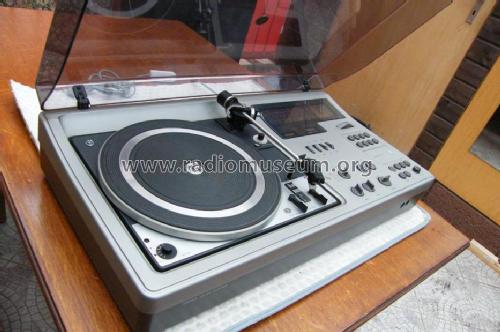

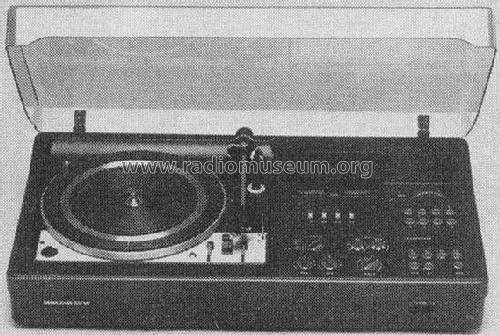

• Wega Stereo-Kompaktgerät Studio 3231 HiFi.
  Ausgangsleistung: 2× 30 W (Sinus); 8 Speichertasten;

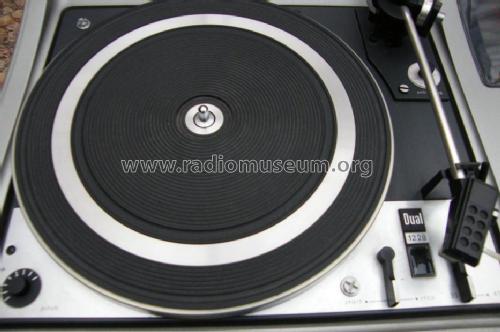

  Phono-Chassis = Dual 1228 mit Magnetsystem Shure M91MGD. 2 x 50 W Musik, Ausführung: metallic oder anthrazit. Verkauf über die Weltfunk anlässlich der Funkausstellung 1975.

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• Handbuch VDRG 1976/1977

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
