• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91201

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC85 ECH81 EAF801 EMM803

• Number of Transistors
• 19

• Semiconductors
• B250C75 AF105 AC122 AC126 AF126 AC127 AC132 AD139 BA121 AA113 AA119 OA160 BA100 Z12

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 155; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 28 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

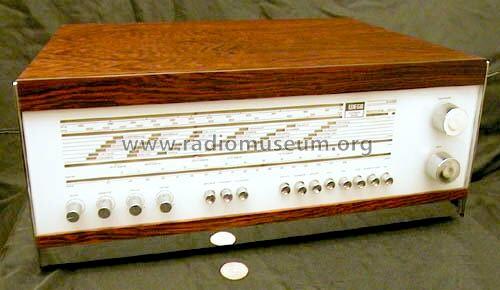

• Model: System 3000 3100 [Palisander] - Wega, Württembergische Radio-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 500 x 200 x 350 mm / 19.7 x 7.9 x 13.8 inch

• Notes

• Wega 3000 System-Komponente, gestaltet von Gerd A. Müller.

  Holzgehäuse mit verchromten Metall-Seitenteilen; Eisenlose Gegentakt-Transistor-Endstufe; UKW-Stereo-Decoder SB2; Kurzwellenlupe; Musikleistung 2 x 14 W. Anschluss für TB, TA kristall, TA magn. mit Vorverstärker. 2 x Lautsprecher, 1 x FS-Ton.

  Jeder Halbleitertyp nur einmal gelistet.

• Net weight (2.2 lb = 1 kg)
• 12.8 kg / 28 lb 3.1 oz (28.194 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Klaus Ortwein. See "Data change" for further contributors.
