Unit 3

Unit 3; Wega, (ID = 2111514) TV Radio Unit 3; Wega, (ID = 2111516) TV Radio

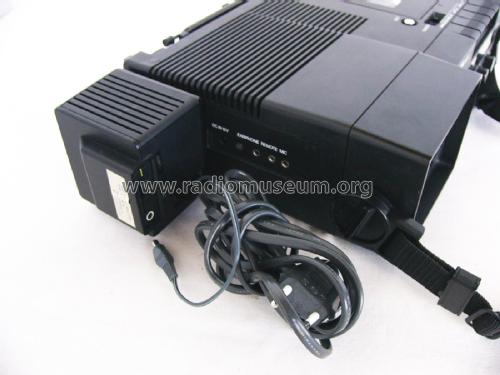

Unit 3; Wega, (ID = 2111521) TV Radio Unit 3; Wega, (ID = 2111522) TV Radio
Unit 3; Wega, (ID = 2111523) TV Radio Unit 3; Wega, (ID = 475513) TV Radio
Use red slider bar for more.
Unit 3; Wega, (ID = 2111514) TV Radio
Wega,: Unit 3 [TV Radio] ID = 2111514 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Unit 3, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1979/1980 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220; 12; ? x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Unit 3 - Wega, Württembergische Radio-
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes Wega Unit 3;
9.4 cm s/w TV mit CCIR B/G VHF-/UHF Tuner, FM-UKW mit AFC, KW und MW Radioteil, Kass. Recorder mit eing. Mikro, Feldstärke/Batt. Anzeige.
Source of data -- Original prospect or advert

Model page created by a member from A. See "Data change" for further contributors.
