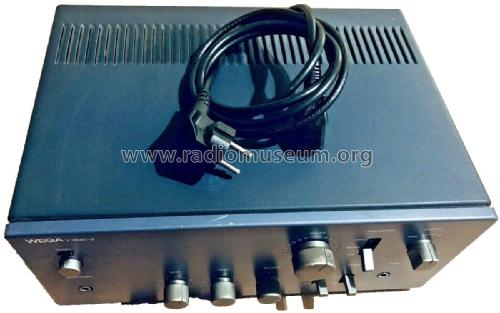

V3840-2; Wega, (ID = 177077) Ampl/Mixer
Wega,: V3840-2 [Ampl/Mixer] ID = 177077 933x492
Select picture or schematic to display from thumbnails on the right and click for download.
For model V3840-2, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1977/1978 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 21:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: V3840-2 - Wega, Württembergische Radio-
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 360 x 145 x 280 mm / 14.2 x 5.7 x 11 inch
Notes ICs: 2.
HiFi-Stereo-Vollverstärker. Ausgangsleistung: 30 W (Sinus). Eingänge: Phono, Tuner, Aux, 2× Tape; 2 LS-Ausgänge.
Gehäuse: anthrazit oder stahlblau.
Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)
Source of data Handbuch VDRG 1977/1978

Model page created by Peter Böhm. See "Data change" for further contributors.
