Wegaphon T 1024

Wegaphon T 1024 ; Wega, (ID = 355772) Radio Wegaphon T 1024 ; Wega, (ID = 355774) Radio

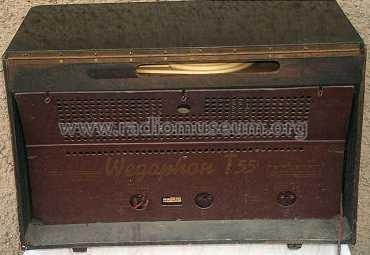

Wegaphon T 1024 ; Wega, (ID = 23476) Radio Wegaphon T 1024 ; Wega, (ID = 355775) Radio
Wegaphon T 1024 ; Wega, (ID = 355776) Radio Wegaphon T 1024 ; Wega, (ID = 1496648) Radio
Wegaphon T 1024 ; Wega, (ID = 1502228) Radio
Use red slider bar for more.
Wegaphon T 1024 ; Wega, (ID = 355772) Radio
Wega,: Wegaphon T 1024 [Radio] ID = 355772 650x441
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wegaphon T 1024, Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

Country:  Germany
Manufacturer / Brand:  Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
alternative name

Württemb. Radio-Ges.mbH; Stuttgart
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7:
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Wegaphon T 1024 - Wega, Württembergische Radio-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 630 x 418 x 295 mm / 24.8 x 16.5 x 11.6 inch
Notes Dieses Gerät Wegaphon T (ohne Zahl) hat ein rundes magisches Auge (EM11 ?), wie das Modell T55, jedoch nicht 5 sondern 6 Tasten. Auch sind die Knöpfe nicht auf der Skala, sondern neben der Skala auf dem Gehäuse angeordnet. Das Wegaphon 56 hat 7 Tasten und eine EM80.
Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
Price in first year of sale 429.00 DM
Mentioned in HdB d.Rdf-& Ferns-GrH 1953/54

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
