Micro CD Audio System 40303C/MAV40A

Micro CD Audio System 40303C/MAV40A; Welltech; Taipeh (ID = 2281746) Radio Micro CD Audio System 40303C/MAV40A; Welltech; Taipeh (ID = 2281747) Radio
Micro CD Audio System 40303C/MAV40A; Welltech; Taipeh (ID = 2281748) Radio Micro CD Audio System 40303C/MAV40A; Welltech; Taipeh (ID = 2281749) Radio
Micro CD Audio System 40303C/MAV40A; Welltech; Taipeh (ID = 2281750) Radio Micro CD Audio System 40303C/MAV40A; Welltech; Taipeh (ID = 2281751) Radio
Use red slider bar for more.

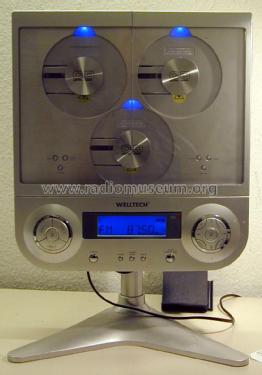

Micro CD Audio System 40303C/MAV40A; Welltech; Taipeh (ID = 2281746) Radio
Welltech; Taipeh: Micro CD Audio System 40303C/MAV40A [Radio] ID = 2281746 819x1169
Select picture or schematic to display from thumbnails on the right and click for download.
For model Micro CD Audio System 40303C/MAV40A, Welltech; Taipeh

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Welltech; Taipeh
Year: 1995 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details CD-Player, -Writer, MD, MOD (audio)
Power type and voltage Alternating Current supply (AC) / 50 Hz, 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Micro CD Audio System 40303C/MAV40A - Welltech; Taipeh
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 355 x 615 x 300 mm / 14 x 24.2 x 11.8 inch
Notes

Welltech 40303C/MAV 40A 3-fold CD-player with AM/FM radio, clock/timer, EQ.

Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.
