• Year
  • 1936 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 128858
    • Brand: Welltone

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 220-240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org

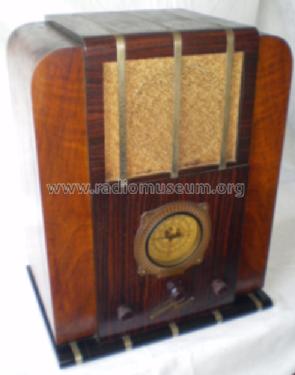

  • Model: Welltone HY 27 [C] - Westing Electrical, The,
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Dimensions (WHD)
  • 380 x 480 x 250 mm / 15 x 18.9 x 9.8 inch
  • Notes
  • Variant "C" stands for 220-240 volts AC, 50-60 Hz, mains supply.
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Daltro D'Arisbo. See "Data change" for further contributors.
