• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1958

• Category
• Detector-Radio (Crystal or diode, without tubes/transistors)

• Radiomuseum.org ID
• 70569

• • alternative name: Heath Company

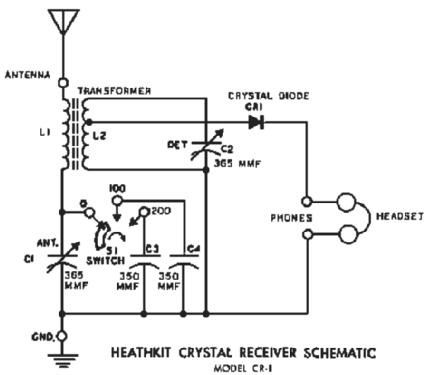

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Crystal or Solid State Detector

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: Crystal Receiver CR-1 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 5.75 x 2 x 3 inch / 146 x 51 x 76 mm

• Notes
•

• Price in first year of sale
• 8.00 $

• External source of data
• Konrad Birkner

• Source of data
• Crystal Clear (Volume 1)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
