Truetone D-2615

• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Auto Supply Co. (Truetone); Kansas City (MO)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 65801

• Picture

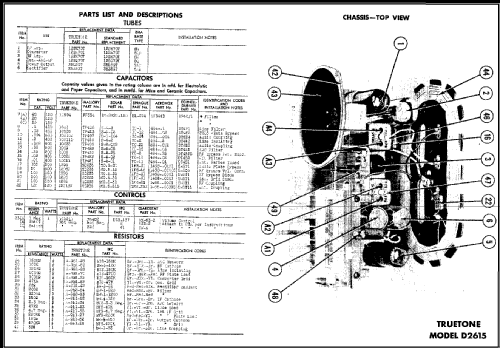

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• from Radiomuseum.org
• Model: Truetone D-2615 - Western Auto Supply Co.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Self Contained Loop Antenna, 6-Button Automatic Tuning.
  Photofact see under Trade name: Truetone.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98 (page 161.)
