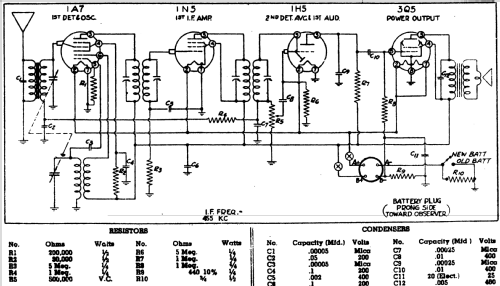

Western Auto Supply: D-1135 Truetone [Radio] ID = 1156808 888x641
Select picture or schematic to display from thumbnails on the right and click for download.
For model D-1135 Truetone, Western Auto Supply Co. (Truetone); Kansas City (MO):
Restoration is complete on the Bob Caster radio

Country:  United States of America (USA)
Manufacturer / Brand:  Western Auto Supply Co. (Truetone); Kansas City (MO)
Year: 1942 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1A7 1N5 1H5 3Q5
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 1.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 0.35 W (unknown quality)
from Radiomuseum.org Model: D-1135 Truetone - Western Auto Supply Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 17.68 x 9.375 x 10.875 inch / 449 x 238 x 276 mm
Notes Model D-2166 uses the same chassis. In the Notes the power output should be clarified to explain that the "undistorted" power output is only 0.27Watts; and the distortion becomes audible as the Volume control is raised to the maximum position which occurs at the 0.35W reading!
Source of data Rider's Perpetual, Volume 14 = covering up to late 1942 (C=1944)

Model page created by John Kusching. See "Data change" for further contributors.



All listed radios etc. from Western Auto Supply Co. (Truetone); Kansas City (MO)
