One Step Receiver WC-4
Western Coil & Electrical Co.; Racine, WI
- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Coil & Electrical Co.; Racine, WI
- Year
- 1922
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 195316
-
- Brand: Radiodyne
- Number of Tubes
- 2
- Main principle
- TRF without regeneration; 1 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: One Step Receiver WC-4 - Western Coil & Electrical Co.;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes

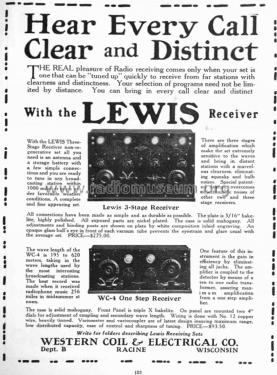

- The Western Coil & Electric Co. WC-4 was introduced in the fall of 1922. It covered the wavelengths of 195-620 meters. In the November 1922 advertisement the Radiodyne name had not yet appeared. The ad also mentioned to "Write for folders describing the Lewis Receiving Sets" implying there might have been more than one Lewis Receiving set.
- Price in first year of sale
- 94.00 $
- Mentioned in
- Citizens Call Book Nov. 1922
- Literature/Schematics (1)
- Radio Manufacturers of the 1920's, Vol. 3 (page 214)
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
