Combination of Crystal set 44001 and LF Amplifier 44001

Combination of Crystal set 44001 and LF Amplifier 44001; Western Electric Co. (ID = 1205395) Crystal Combination of Crystal set 44001 and LF Amplifier 44001; Western Electric Co. (ID = 1205397) Crystal
Combination of Crystal set 44001 and LF Amplifier 44001; Western Electric Co. (ID = 1205398) Crystal Combination of Crystal set 44001 and LF Amplifier 44001; Western Electric Co. (ID = 1205399) Crystal
Combination of Crystal set 44001 and LF Amplifier 44001; Western Electric Co. (ID = 1205400) Crystal
Use red slider bar for more.
Combination of Crystal set 44001 and LF Amplifier 44001; Western Electric Co. (ID = 1205395) Crystal
Western Electric Co.: Combination of Crystal set 44001 and LF Amplifier 44001 [Crystal] ID = 1205395 466x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Combination of Crystal set 44001 and LF Amplifier 44001, Western Electric Co. Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Western Electric Co. Ltd.; London
Year: 1923 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Valves / Tubes 2: 215A 215A
Main principle Crystal or Solid State Detector with Amplifer
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 45 & 2 or 3 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Combination of Crystal set 44001 and LF Amplifier 44001 - Western Electric Co. Ltd.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 216 x 178 x 184 mm / 8.5 x 7 x 7.2 inch

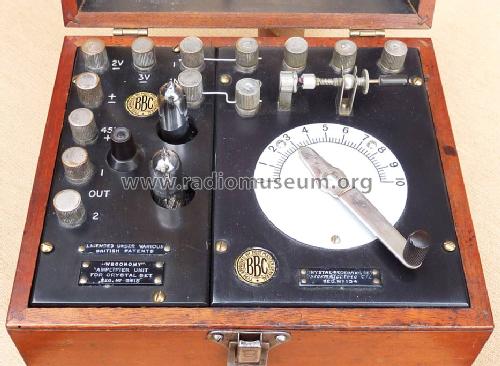

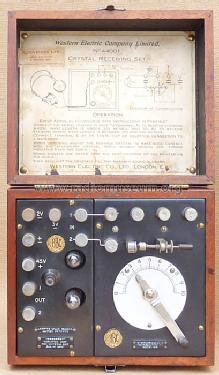

Notes Weconomy LF Amplifying Unit (BBC/PMG stamp; GPO No. 3415) inserted into the phone compartment of Crystal set 44001.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Collectors' prices
Mentioned in Radio! Radio! (Fig. 85)

Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
