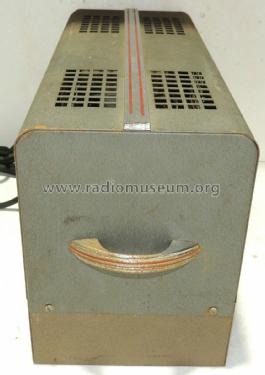

Amplifier D-151195; Western Electric (ID = 2622179) Ampl/Mixer Amplifier D-151195; Western Electric (ID = 2622180) Ampl/Mixer
Use red slider bar for more.
Amplifier D-151195; Western Electric (ID = 2621956) Ampl/Mixer
Western Electric: Amplifier D-151195 [Ampl/Mixer] ID = 2621956 1400x826
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier D-151195, Western Electric Company Inc.; New York (NY):
aus ebay, #193872950174, mit Erlaubnis des Verkäufers mono

Country:  United States of America (USA)
Manufacturer / Brand:  Western Electric Company Inc.; New York (NY)
Year: 1941 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 4: 6L7 6J7G 6L6G 5Y3G
Main principle Audio-Amplification; 3 AF stage(s)
Wave bands - without
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110-125 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (undistorted)
from Radiomuseum.org Model: Amplifier D-151195 - Western Electric Company Inc.;
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 19 x 9 x 8 inch / 483 x 229 x 203 mm
Notes

2 switchable inputs for crystal microphones; external gain control.

Net weight (2.2 lb = 1 kg) 20 lb (20 lb 0 oz) / 9.080 kg
Mentioned in -- Original-techn. papers.

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
