Amplifier 61-A

Amplifier 61-A; Western Electric (ID = 1858279) Ampl/Mixer Amplifier 61-A; Western Electric (ID = 1858281) Ampl/Mixer
Amplifier 61-A; Western Electric (ID = 1860290) Ampl/Mixer Amplifier 61-A; Western Electric (ID = 1860292) Ampl/Mixer

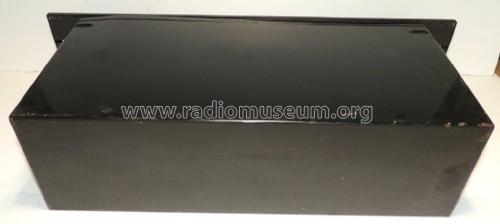

Amplifier 61-A; Western Electric (ID = 1860293) Ampl/Mixer Amplifier 61-A; Western Electric (ID = 1860294) Ampl/Mixer
Amplifier 61-A; Western Electric (ID = 1860295) Ampl/Mixer
Use red slider bar for more.
Amplifier 61-A; Western Electric (ID = 1858279) Ampl/Mixer
Western Electric: Amplifier 61-A [Ampl/Mixer] ID = 1858279 992x368
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier 61-A, Western Electric Company Inc.; New York (NY):
aus ebay, #191622811668, mit Erlaubnis des Verkäufers mono

Country:  United States of America (USA)
Manufacturer / Brand:  Western Electric Company Inc.; New York (NY)
Year: 1930 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 2: 247A 247A
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 350 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Amplifier 61-A - Western Electric Company Inc.;
Material Metal case, TUBES VISIBLE
Shape Rack
Dimensions (WHD) 19 x 5.25 x 8 inch / 483 x 133 x 203 mm
Net weight (2.2 lb = 1 kg) 24.5 lb (24 lb 8 oz) / 11.123 kg
Mentioned in -- Schematic
Documents regarding this model
  Manufacturer's data including a schematic. 2244 KB

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
