Amplifier 86B

Amplifier 86B; Western Electric (ID = 696506) Ampl/Mixer Amplifier 86B; Western Electric (ID = 696507) Ampl/Mixer
Amplifier 86B; Western Electric (ID = 698121) Ampl/Mixer Amplifier 86B; Western Electric (ID = 698122) Ampl/Mixer

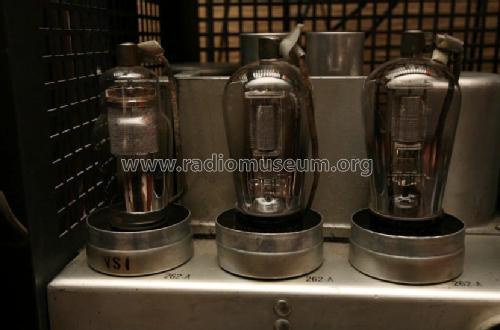

Amplifier 86B; Western Electric (ID = 698123) Ampl/Mixer Amplifier 86B; Western Electric (ID = 698124) Ampl/Mixer
Amplifier 86B; Western Electric (ID = 1213998) Ampl/Mixer Amplifier 86B; Western Electric (ID = 1213999) Ampl/Mixer

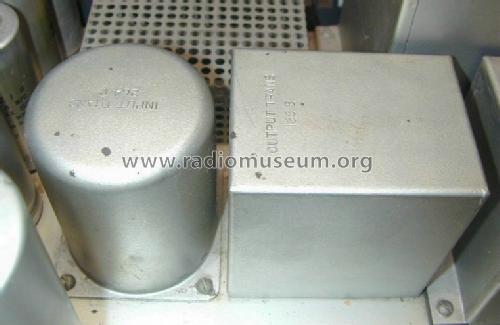

Amplifier 86B; Western Electric (ID = 1214001) Ampl/Mixer Amplifier 86B; Western Electric (ID = 1214003) Ampl/Mixer
Use red slider bar for more.
Amplifier 86B; Western Electric (ID = 696506) Ampl/Mixer
Western Electric: Amplifier 86B [Ampl/Mixer] ID = 696506 640x458
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier 86B, Western Electric Company Inc.; New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Western Electric Company Inc.; New York (NY)
Year: 1934 ? Category: Audio Amplifier or -mixer
Valves / Tubes 6: 262A 262A 262A 300A 300A 274A
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Amplifier 86B - Western Electric Company Inc.;
Material Metal case
Shape Chassis only or for «building in»
Notes Professional cinema amplifier.
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Mark Donen. See "Data change" for further contributors.
