91A Amplifier

91A Amplifier; Western Electric (ID = 2074985) Ampl/Mixer

91A Amplifier; Western Electric (ID = 2074986) Ampl/Mixer

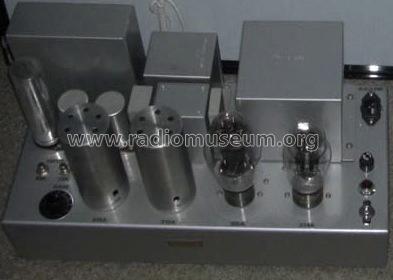

91A Amplifier; Western Electric (ID = 696381) Ampl/Mixer 91A Amplifier; Western Electric (ID = 696382) Ampl/Mixer

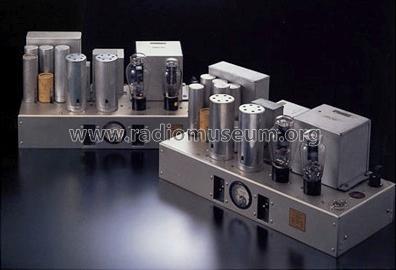

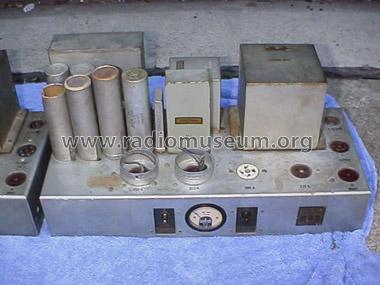

91A Amplifier; Western Electric (ID = 696383) Ampl/Mixer 91A Amplifier; Western Electric (ID = 696384) Ampl/Mixer
91A Amplifier; Western Electric (ID = 696385) Ampl/Mixer
Use red slider bar for more.
91A Amplifier; Western Electric (ID = 696381) Ampl/Mixer
Western Electric: 91A Amplifier [Ampl/Mixer] ID = 696381 350x216
Select picture or schematic to display from thumbnails on the right and click for download.
For model 91A Amplifier, Western Electric Company Inc.; New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Western Electric Company Inc.; New York (NY)
Year: 1933 ? Category: Audio Amplifier or -mixer
Valves / Tubes 4: 6C6 6C6 300B 274A
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 91A Amplifier - Western Electric Company Inc.;
Notes Professional cinema amplifier.
Source of data -- Schematic
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Mark Donen. See "Data change" for further contributors.
