Audion Control Box Type SE1070

Audion Control Box Type SE1070; Western Electric (ID = 994016) mod-pre26
Audion Control Box Type SE1070; Western Electric (ID = 2048988) mod-pre26 Audion Control Box Type SE1070; Western Electric (ID = 993951) mod-pre26
Audion Control Box Type SE1070; Western Electric (ID = 993952) mod-pre26 Audion Control Box Type SE1070; Western Electric (ID = 993955) mod-pre26
Audion Control Box Type SE1070; Western Electric (ID = 993958) mod-pre26 Audion Control Box Type SE1070; Western Electric (ID = 993961) mod-pre26
Audion Control Box Type SE1070; Western Electric (ID = 993963) mod-pre26 Audion Control Box Type SE1070; Western Electric (ID = 993964) mod-pre26
Audion Control Box Type SE1070; Western Electric (ID = 993966) mod-pre26 Audion Control Box Type SE1070; Western Electric (ID = 993968) mod-pre26
Use red slider bar for more.
Audion Control Box Type SE1070; Western Electric (ID = 2048988) mod-pre26
Western Electric: Audion Control Box Type SE1070 [mod-pre26] ID = 2048988 1290x1755
Select picture or schematic to display from thumbnails on the right and click for download.
For model Audion Control Box Type SE1070, Western Electric Company Inc.; New York (NY):
collection privée (ref: 1801, ...)

Country:  United States of America (USA)
Manufacturer / Brand:  Western Electric Company Inc.; New York (NY)
Year: 1918 perfect model Category: Radio module pre 1926 (not a part, not a key)
Valves / Tubes 1: VT-1
Main principle Detector with Vacuum Tube (Valve), no tuner
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Audion Control Box Type SE1070 - Western Electric Company Inc.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 7.5 x 14.5 x 6.5 inch / 191 x 368 x 165 mm

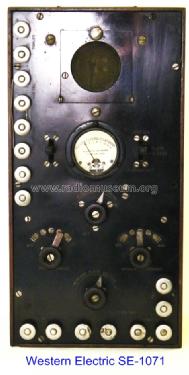

Notes Western Electric SE1071 Audion Control Box. Detector unit for wireless receivers like the IP-500/SE-143. Dated 1918. Made for the Navy Department Bureau of Steam Engineering by Western Electric Co., using the VT-1. From 1919 onwards, also VT-Class_I or B_Moorhead could be used.
Literature/Schematics (1) Information taken from my example of this model

Model page created by Alan Larsen. See "Data change" for further contributors.
