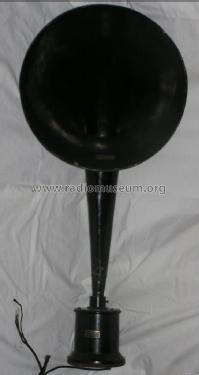

10-D Loud Speaking Horn Loud Speaking Telephone Outfit

Western Electric Company Inc.; New York (NY)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Western Electric Company Inc.; New York (NY)

Year
1922/1923

Category
Loudspeaker, headphone or earphone

Radiomuseum.org ID
129023

Schematics

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 440911) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 635493) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)
ebay #200345544529

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 635494) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)
ebay #200345544529

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 635495) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)
ebay #200345544529

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 635496) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)
ebay #200345544529

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 635497) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)
ebay #200345544529

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 1186042) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 1202528) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)
Ebay User kahnsradio Item 140730639937

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 1202529) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)
Ebay User kahnsradio Item 140730639937

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 1202530) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)
Ebay User kahnsradio Item 140730639937

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 1202531) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)
Ebay User kahnsradio Item 140730639937

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 1202532) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)
Ebay User kahnsradio Item 140730639937

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 1202534) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)
Ebay User kahnsradio Item 140730639937

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 1654893) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 1654894) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 1654895) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 1654896) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 1654898) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 1654899) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 2804948) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)

10-D Loud Speaking Horn Loud Speaking Telephone Outfit; Western Electric (ID = 2804949) Speaker-P — Western Electric 10-D Loud Speaking Horn Loud Speaking Telephone Outfit (2)

Technical Specifications

Wave bands
- without

Power type and voltage
No Power needed

Loudspeaker
Horn

Material
Bakelite case

from Radiomuseum.org
Model: 10-D Loud Speaking Horn Loud Speaking Telephone Outfit - Western Electric Company Inc.;

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
14 x 30 x 0 inch / 356 x 762 x 0 mm

Notes
Straight neck Horn Speaker. permanent magnet. Armature driver. Input resistance 1 kOhm.
Consisting of the following elements:
Horn 8A
Cord 767
Xformer 112A. This Western Electric Horn Speaker model 10D was also offered for $ 55 in 1923 (postal stamp) by "The North American Radio & Supply Corp.", 5-7 Columbus Circle, New York City.

Price in first year of sale
55.00 $

Source of data
-- Collector info (Sammler)

Mentioned in
Floyd L.Paul: Radio Horn Speaker Encyclopedia.

Literature/Schematics (1)
Radio Manufacturers of the 1920's, Vol. 3

Literature/Schematics (2)
Modern Radio Reception, C.R. Leutz, 1924, Page 102

Author
Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
