Weconomy LF Amplfying Unit for Crystal set 44001
Western Electric Co. Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Western Electric Co. Ltd.; London
- Year
- 1923
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 76112
- Number of Tubes
- 2
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Storage and/or dry batteries / 45 & 2 or 3 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Various materials
- from Radiomuseum.org

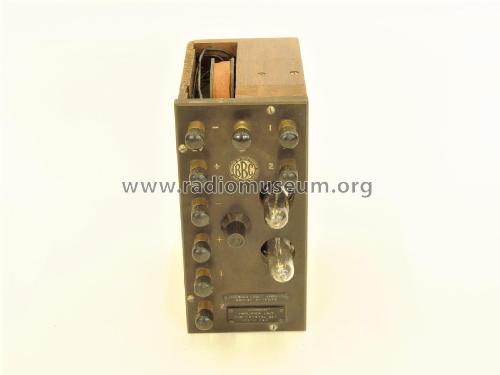

- Model: Weconomy LF Amplfying Unit for Crystal set 44001 - Western Electric Co. Ltd.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 3 x 4.5 x 6.5 inch / 76 x 114 x 165 mm
- Notes
- BBC/PMG stamp, GPO No.3415; fits the headphone compartment of the WE 44001 Crystal Set; designed to operate a horn speaker from the Crystal set.
- Mentioned in
- Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 384)
- Literature/Schematics (1)
- Radio! Radio! (Fig.84)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
