10 band World Receiver KK-9803; Westfalia, (ID = 1787014) Radio
Westfalia,: 10 band World Receiver KK-9803 [Radio] ID = 1787014 1400x1025
Select picture or schematic to display from thumbnails on the right and click for download.
For model 10 band World Receiver KK-9803, Westfalia, Profisound; Hagen

Country:  Germany
Manufacturer / Brand:  Westfalia, Profisound; Hagen
Year: 2004 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: CXA1691 S9014 S9014 S9018
Main principle Superheterodyne (common)
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 2 × 1,5 AA / 3 Volt

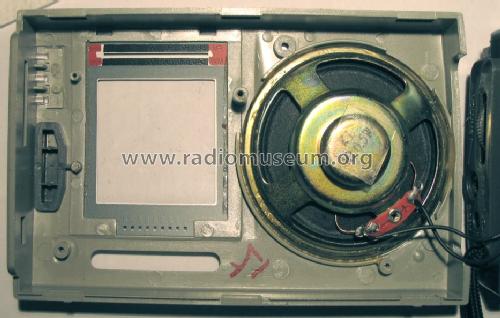

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.25 W (max.)
from Radiomuseum.org Model: 10 band World Receiver KK-9803 - Westfalia, Profisound; Hagen
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 118 x 75 x 25 mm / 4.6 x 3 x 1 inch
Notes

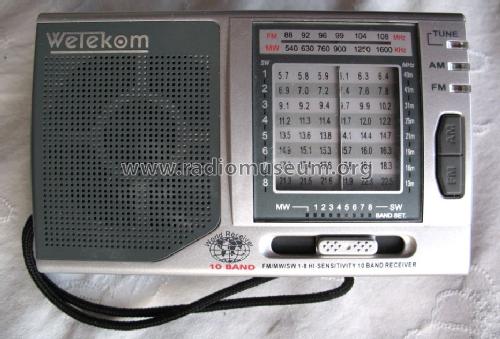

8 SW bands: 49; 41; 31; 25; 21; 19; 16; and 13 m band. Similar radio Kchibo KK-9803.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Westfalia, Profisound; Hagen
Here you find 17 models, 17 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
