- Country
- Australia
- Manufacturer / Brand
- Westinghouse (brand), Sydney
- Year
- 1941 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 248800

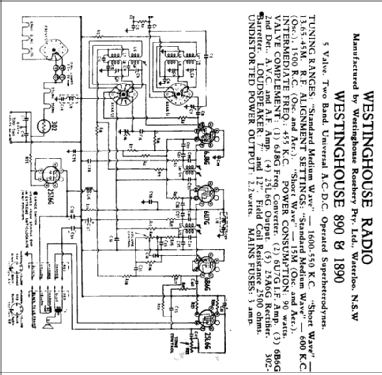

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 200-260 Volt
- Loudspeaker
- Ø 7 inch = 17.8 cm
- Power out
- 2.2 W (undistorted)
- from Radiomuseum.org
- Model: 890 - Westinghouse brand, Sydney
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Chassis is used in the Consol Model 1890 with a 12" speaker also.
- Mentioned in
- AORSM Vol 4, Page 327, 1941
- Author
- Model page created by Gary Cowans. See "Data change" for further contributors.
