Camera-Lunar TV Apollo 11 NTN 511217-201 (607R962)

ID = 155625

{gbW: "1400", gbH: "1348", mW: "389.0", mH: "375", kb: "207 KB", notes: "For model Camera-Lunar TV Apollo 11 NTN 511217-201 (607R962), Westinghouse El. & Mfg. Co. - see also Canadian W.:[br]Lunar television camera for Apollo 11 Moon landing, Westinghouse, identical to the model used on the Moon. [br] Exhibit in the National Electronics Museum [br] Author: Daderot (public domain)", title: "Westinghouse El. & Camera-Lunar TV Apollo 11 NTN 511217-201 uploaded by Heribert Jung (2)", ite: "2"} {gbW: "1028", gbH: "840", mW: "458.0", mH: "375", kb: "97 KB", notes: "For model Camera-Lunar TV Apollo 11 NTN 511217-201 (607R962), Westinghouse El. & Mfg. Co. - see also Canadian W.:[br]Stan Lebar, the project manager for Westinghouse's Apollo Television Cameras, shows the Monochrome Lunar Surface Camera. [br] Wikipedia Source: National Aeronautics and Space Administration [br] This file is in the public domain.", title: "Westinghouse El. & Camera-Lunar TV Apollo 11 NTN 511217-201 uploaded by Heribert Jung (2)", ite: "2"} {gbW: "434", gbH: "414", mW: "393.0", mH: "375", kb: "37 KB", notes: "For model Camera-Lunar TV Apollo 11 NTN 511217-201 (607R962), Westinghouse El. & Mfg. Co. - see also Canadian W.:[br]Westinghouse Apollo Lunar Television Camera Operations Manual 30 August 1968", title: "Westinghouse El. & Camera-Lunar TV Apollo 11 NTN 511217-201 uploaded by RM Member (sID 38) (2)", ite: "2"} {gbW: "457", gbH: "385", mW: "445.0", mH: "375", kb: "46 KB", notes: "For model Camera-Lunar TV Apollo 11 NTN 511217-201 (607R962), Westinghouse El. & Mfg. Co. - see also Canadian W.:[br]Westinghouse Apollo Lunar Television Camera Operations Manual 30 August 1968", title: "Westinghouse El. & Camera-Lunar TV Apollo 11 NTN 511217-201 uploaded by RM Member (sID 38) (2)", ite: "2"} {gbW: "406", gbH: "373", mW: "406", mH: "373", kb: "32 KB", notes: "For model Camera-Lunar TV Apollo 11 NTN 511217-201 (607R962), Westinghouse El. & Mfg. Co. - see also Canadian W.:[br]Westinghouse Apollo Lunar Television Camera Operations Manual 30 August 1968", title: "Westinghouse El. & Camera-Lunar TV Apollo 11 NTN 511217-201 uploaded by RM Member (sID 38) (2)", ite: "2"} {gbW: "409", gbH: "582", mW: "263.0", mH: "375", kb: "37 KB", notes: "For model Camera-Lunar TV Apollo 11 NTN 511217-201 (607R962), Westinghouse El. & Mfg. Co. - see also Canadian W.:[br]Westinghouse Apollo Lunar Television Camera Operations Manual 30 August 1968", title: "Westinghouse El. & Camera-Lunar TV Apollo 11 NTN 511217-201 uploaded by RM Member (sID 38) (2)", ite: "2"} {gbW: "414", gbH: "314", mW: "414", mH: "314", kb: "21 KB", notes: "For model Camera-Lunar TV Apollo 11 NTN 511217-201 (607R962), Westinghouse El. & Mfg. Co. - see also Canadian W.:[br]Westinghouse Apollo Lunar Television Camera Operations Manual 30 August 1968", title: "Westinghouse El. & Camera-Lunar TV Apollo 11 NTN 511217-201 uploaded by RM Member (sID 38) (2)", ite: "2"} {gbW: "790", gbH: "698", mW: "424.0", mH: "375", kb: "103 KB", notes: "For model Camera-Lunar TV Apollo 11 NTN 511217-201 (607R962), Westinghouse El. & Mfg. Co. - see also Canadian W.:[br]Westinghouse Apollo Lunar Television Camera Operations Manual 30 August 1968", title: "Westinghouse El. & Camera-Lunar TV Apollo 11 NTN 511217-201 uploaded by RM Member (sID 38) (2)", ite: "2"} {gbW: "550", gbH: "385", mW: "500", mH: "350.0", kb: "45 KB", notes: "For model Camera-Lunar TV Apollo 11 NTN 511217-201 (607R962), Westinghouse El. & Mfg. Co. - see also Canadian W.:[br]Westinghouse Apollo Lunar Television Camera Operations Manual 30 August 1968", title: "Westinghouse El. & Camera-Lunar TV Apollo 11 NTN 511217-201 uploaded by RM Member (sID 38) (2)", ite: "2"} {gbW: "398", gbH: "700", mW: "213.0", mH: "375", kb: "41 KB", notes: "For model Camera-Lunar TV Apollo 11 NTN 511217-201 (607R962), Westinghouse El. & Mfg. Co. - see also Canadian W.:[br]Westinghouse Apollo Lunar Television Camera Operations Manual 30 August 1968", title: "Westinghouse El. & Camera-Lunar TV Apollo 11 NTN 511217-201 uploaded by RM Member (sID 38) (2)", ite: "2"}

Camera-Lunar TV Apollo 11 NTN 511217-201 ; Westinghouse El. & (ID = 2535607) TV-studio

Camera-Lunar TV Apollo 11 NTN 511217-201 ; Westinghouse El. & (ID = 2535608) TV-studio

Camera-Lunar TV Apollo 11 NTN 511217-201 ; Westinghouse El. & (ID = 618099) TV-studio

Camera-Lunar TV Apollo 11 NTN 511217-201 ; Westinghouse El. & (ID = 618097) TV-studio

Camera-Lunar TV Apollo 11 NTN 511217-201 ; Westinghouse El. & (ID = 618096) TV-studio

Camera-Lunar TV Apollo 11 NTN 511217-201 ; Westinghouse El. & (ID = 618094) TV-studio

Camera-Lunar TV Apollo 11 NTN 511217-201 ; Westinghouse El. & (ID = 618095) TV-studio

Camera-Lunar TV Apollo 11 NTN 511217-201 ; Westinghouse El. & (ID = 618098) TV-studio

Camera-Lunar TV Apollo 11 NTN 511217-201 ; Westinghouse El. & (ID = 618100) TV-studio

Next pictures

Use red slider bar for more.

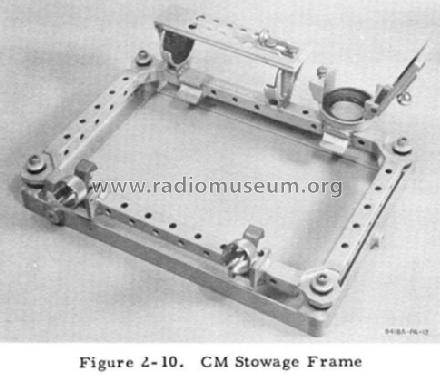

Westinghouse El. &: Camera-Lunar TV Apollo 11 NTN 511217-201 [TV-studio] ID = 2535607 1400x1348

Select picture or schematic to display from thumbnails on the right and click for download.

For model Camera-Lunar TV Apollo 11 NTN 511217-201 (607R962), Westinghouse El. & Mfg. Co. - see also Canadian W.:

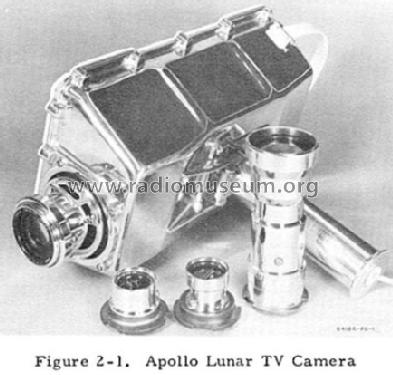

Lunar television camera for Apollo 11 Moon landing, Westinghouse, identical to the model used on the Moon.
