• Year
  • 1947/1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 66231
    • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 120 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Power out
  • 6 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

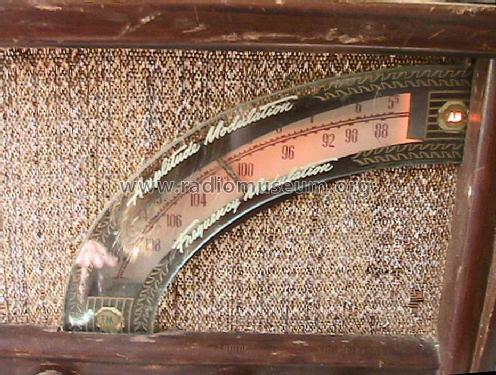

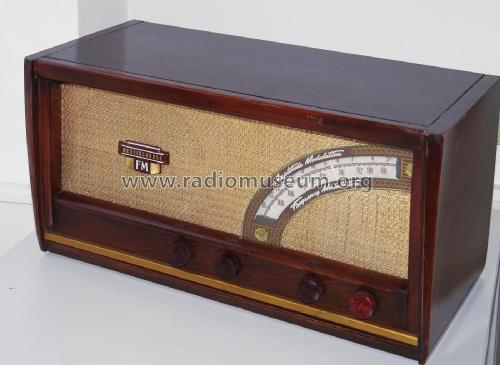

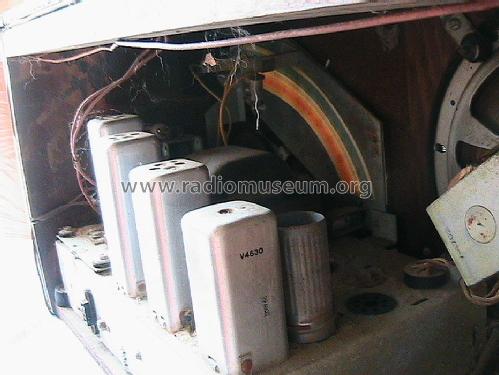

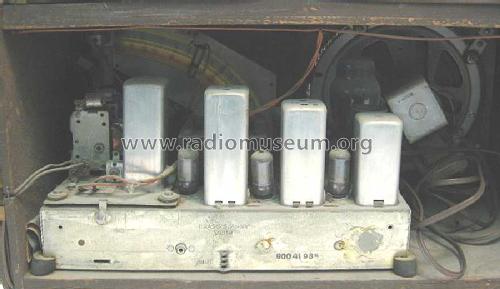

  • Model: H-161 Ch= V-2118 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 20.875 x 10.5 x 10.125 inch / 530 x 267 x 257 mm
  • Notes
  • Colors are as follows: Mahogany and Blonde.

  • External source of data
  • Ernst Erb

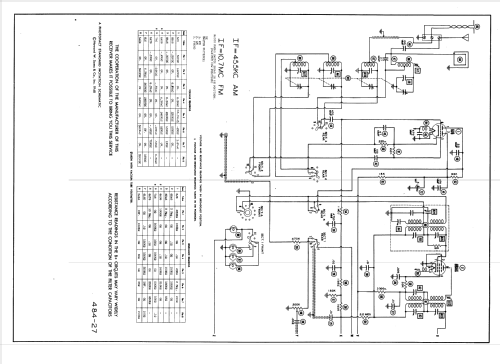

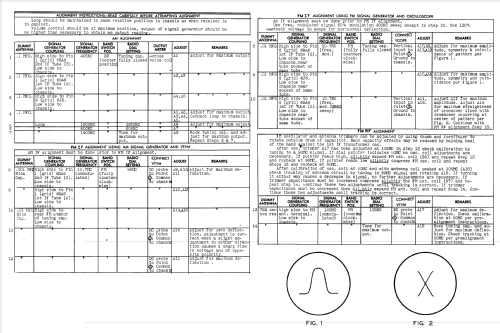

  • Circuit diagram reference
  • Rider's Perpetual, Volume 18 = 1949 and before
  • Literature/Schematics (3)

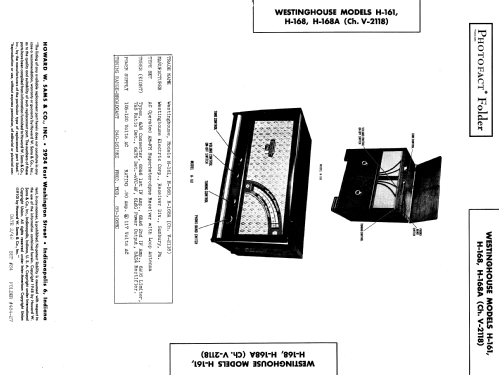

  • -- Original prospect or advert (The Westinghouse Folder for 1947.)
