• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66247

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SA7 6SF7 6SC7 25L6GT 25L6GT 25Z6GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105/120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.7 inch = 17 cm

• Power out
• 5 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: H-171 Consolette Ch= V-2103 - Westinghouse El. & Mfg. Co. -

• Shape
• Console: Chairside Radio.

• Notes

• Self contained loop antenna.

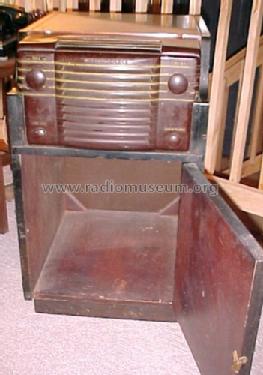

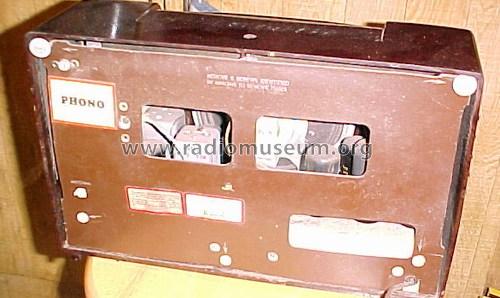

  The Westinghouse H-171 consists of a chairside phonograph cabinet that uses a removable Westinghouse H-122 AM-FM radio with its phono input as the amplifier.  The H-122 could be used as part of the console, or removed and used as a standalone radio.

  The radio was available in both red-brown (Bakelite) or painted white.  The console cabinet was matched in either mahogany or blonde.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)

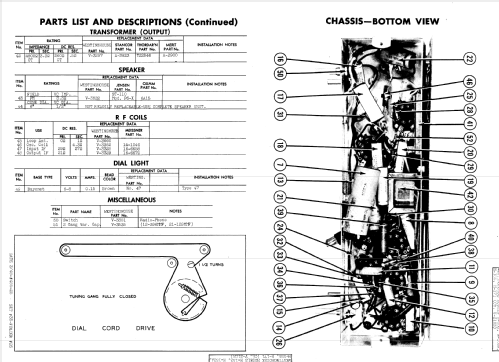

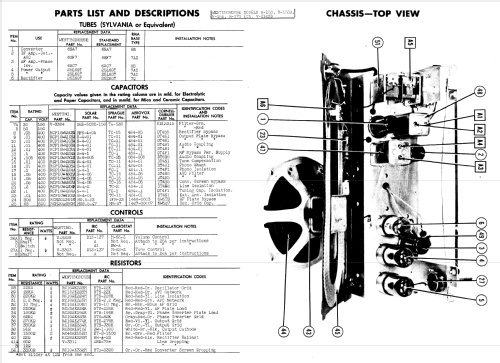

• Riders 15-5, 6, 7, Riders 17-9 , Riders 19-8

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (August 1947 page 23.)

• Literature/Schematics (3)
• -- Original prospect or advert (The Westinghouse Folder for 1947.)

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 35, Date 3/48, Folder 485-25)
