• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77690

• • alternative name: Westinghouse El. Int.

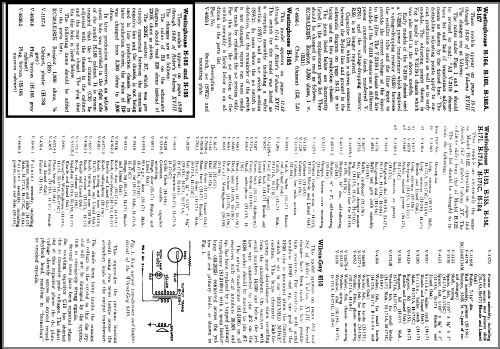

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1T4 1U5 3S4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC 105-125/ 67.5 & 7.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.02 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: H-195 Ch= V-2131-1 - Westinghouse El. & Mfg. Co. -

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Selenium Rectifier

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 54, Folder 20)

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 09, 1949

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
