H-318T5U Ch= V-2157U

H-318T5U Ch= V-2157U; Westinghouse El. & (ID = 122397) Radio

H-318T5U Ch= V-2157U; Westinghouse El. & (ID = 260103) Radio

H-318T5U Ch= V-2157U; Westinghouse El. & (ID = 260104) Radio

H-318T5U Ch= V-2157U; Westinghouse El. & (ID = 260105) Radio

H-318T5U Ch= V-2157U; Westinghouse El. & (ID = 260106) Radio
H-318T5U Ch= V-2157U; Westinghouse El. & (ID = 895444) Radio H-318T5U Ch= V-2157U; Westinghouse El. & (ID = 895445) Radio
H-318T5U Ch= V-2157U; Westinghouse El. & (ID = 260101) Radio
Use red slider bar for more.
H-318T5U Ch= V-2157U; Westinghouse El. & (ID = 895444) Radio
Westinghouse El. &: H-318T5U Ch= V-2157U [Radio] ID = 895444 933x782
Select picture or schematic to display from thumbnails on the right and click for download.
For model H-318T5U Ch= V-2157U, Westinghouse El. & Mfg. Co. - see also Canadian W.:
Westinghouse H-318T5 Front View

Country:  United States of America (USA)
Manufacturer / Brand:  Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name

Westinghouse El. Int.
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.9 W (unknown quality)
from Radiomuseum.org Model: H-318T5U Ch= V-2157U - Westinghouse El. & Mfg. Co. -
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 9.25 x 6.75 x 5.5 inch / 235 x 171 x 140 mm
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 21, Copyright 1950

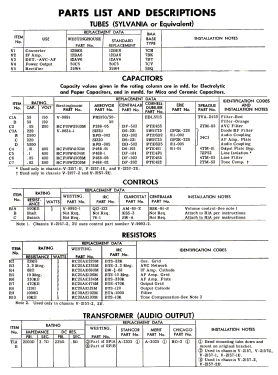

Literature/Schematics (1) Beitman Radio Diagrams, Vol. 11, 1951
