• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66349

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12AT7 12BE6 12BA6 6BJ6 12AL5 12AV6 50C5

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 117V = 105 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

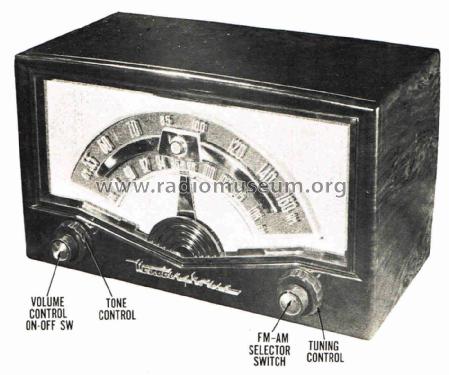

• Model: H-334T7U Ch= V-2136-5U - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Westinghouse model H-334T7U is an AC/DC operated AM-FM superheterodyne receiver with loop antenna. Selenium Rectifier. Typo in tube parts list V4 (6BJ7) has to be 6BJ6.



• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 22, covering 1951

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 11, 1951

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 142, folder 16, date 8-51)
