H-100AC1 Ch= V-2537-1

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data
Forum
Pictures
Collections

  • Year
  • 1964
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 93490
    • alternative name: Westinghouse El. Int.

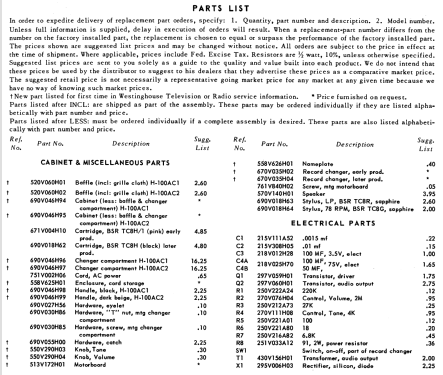

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 2
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: H-100AC1 Ch= V-2537-1 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • The Westinghouse Model H-100AC1 is a portable AC Operated 2 Transistor Mono Amplifier with 4 Speed Automatic Record Changer. Has Qty(1) PM 4" speaker. Cabinet color is Charcoal. Early production uses Record Changer 670V035H02 and late production uses Record Changer 670V035H04, both with speeds of 16, 33, 45 and 78 RPM. Westinghouse model H-100AC2 uses the same chassis and schematic, the difference being cabinet color.
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 25, 1965
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Westinghouse Datasheet PH6064)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
