• Year
  • 1965
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 216580
    • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 4
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 4 inch = 10.2 cm
  • Power out
  • 0.66 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: H-115ACS1 Ch= V-2537-2 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes

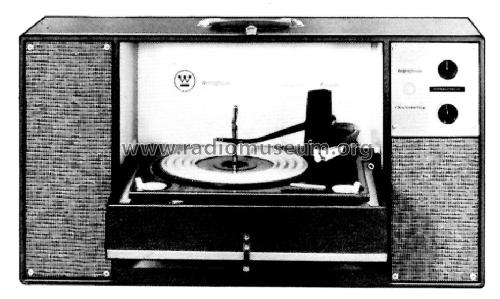

  • The Westinghouse Model H-115ACS1 is a portable AC Operated 4 Transistor Stereo Amplifier with 4 Speed Automatic Record Changer. Has Qty(2) PM 4" speakers. Cabinet color is Gray. Uses Record Changer 670V035H01, with speeds of 16, 33, 45 and 78 RPM. For service information and schematic, see Westinghouse model H-105ACS1. Westinghouse model H-116ACS1 uses the same schematic and chassis, the difference being cabinet color.
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Westinghouse Datasheets PH6079, PH6060)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
