• Year
  • 1965
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 216583
    • alternative name: Westinghouse El. Int.

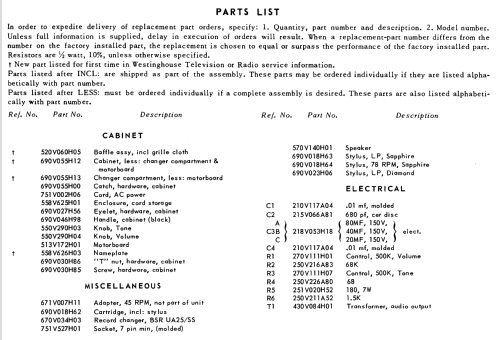

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • from Radiomuseum.org
  • Model: H-126AC1 Ch= V-2508-19 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • The Westinghouse Model H-126AC1 is a portable AC Operated 2 Tube Mono Amplifier with 4 Speed Automatic Record Changer. Has Qty(1) PM 4" speaker. Cabinet color is Gray. Uses Record Changer 670V034H03, with speeds of 16, 33, 45 and 78 RPM. For service information and schematics, see Westinghouse model H-125AC1.
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Westinghouse Datasheets PH6082, PH6070)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
