H-165 ; Westinghouse El. & (ID = 618880) Radio

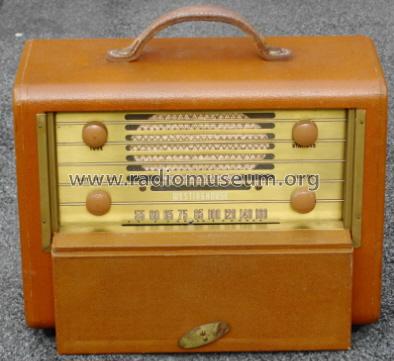

Westinghouse El. &: H-165 [Radio] ID = 618880 394x361
Select picture or schematic to display from thumbnails on the right and click for download.
For model H-165, Westinghouse El. & Mfg. Co. - see also Canadian W.

Country:  United States of America (USA)
Manufacturer / Brand:  Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name

Westinghouse El. Int.
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1U4 1R5 1U4 1S5 3V4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC/DC 105 - 120/ 90 & 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: H-165 - Westinghouse El. & Mfg. Co. -
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Notes

Selenium Rectifier
4" x 6" PM elliptical speaker.

Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 09, 1949
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (July 1947 page 24, 25.)
Literature/Schematics (3) -- Original prospect or advert (The Westinghouse Folder for 1947.)
Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Set 32, Date 1/48, Folder 482-29)
