H-204 Ch= V-2128-2; Westinghouse El. & (ID = 119770) Radio
Westinghouse El. &: H-204 Ch= V-2128-2 [Radio] ID = 119770 800x600

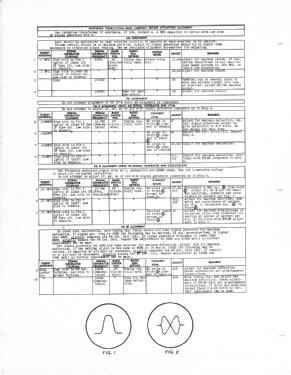

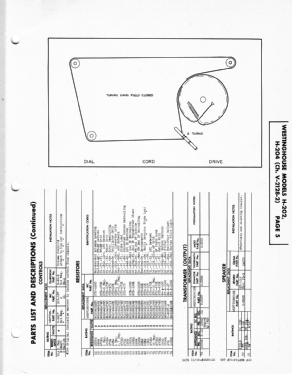

Select picture or schematic to display from thumbnails on the right and click for download.
For model H-204 Ch= V-2128-2, Westinghouse El. & Mfg. Co. - see also Canadian W.:

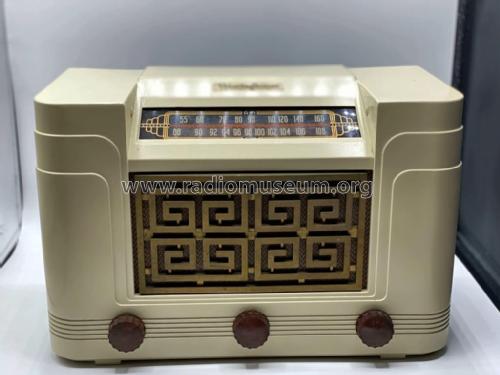

H-204 (1948) copy from Ebay seller gemlakesandy

Country:  United States of America (USA)
Manufacturer / Brand:  Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name

Westinghouse El. Int.
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12AT7 12BA6 12BA6 19T8 12BE6 50B5
Semiconductors (the count is only for transistors) Selenium-Rectifier
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 105 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: H-204 Ch= V-2128-2 - Westinghouse El. & Mfg. Co. -
Material Bakelite case
Shape Tablemodel, with any shape - general.
Notes

Available in brown, ivory finish or green finish.

External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 09, 1949
Literature/Schematics (2) Table Top Radios Vol. 4 Stein 2003 (page 163.)


All listed radios etc. from Westinghouse El. & Mfg. Co. - see also Canadian W.
