• Year
  • 1949 ?
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 223599
    • alternative name: Westinghouse El. Int.

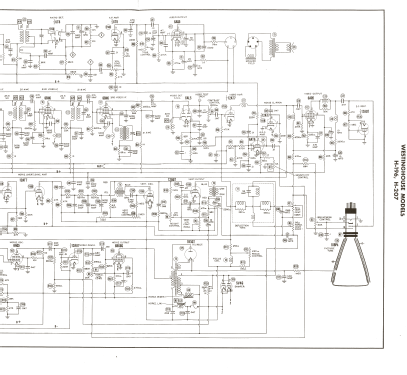

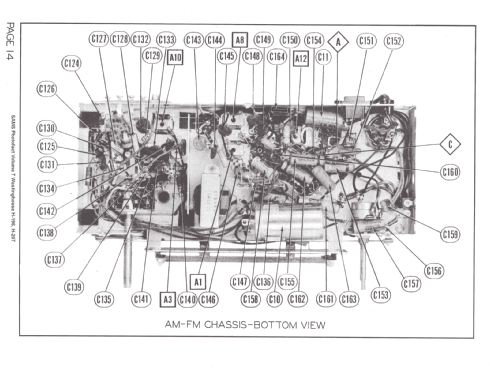

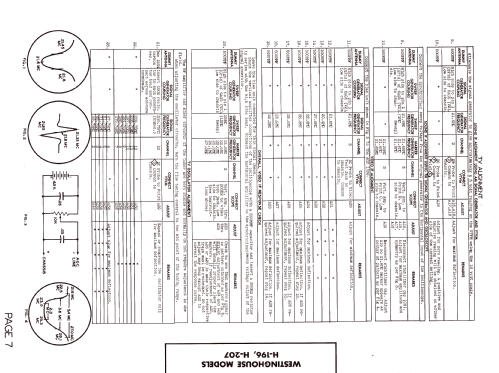

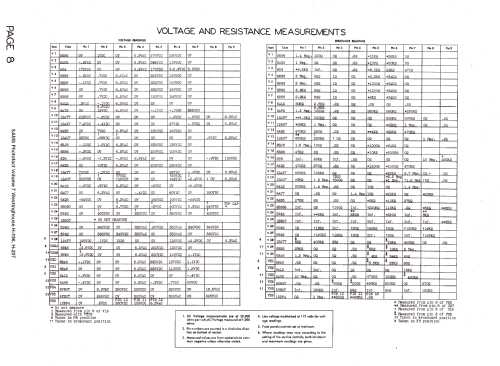

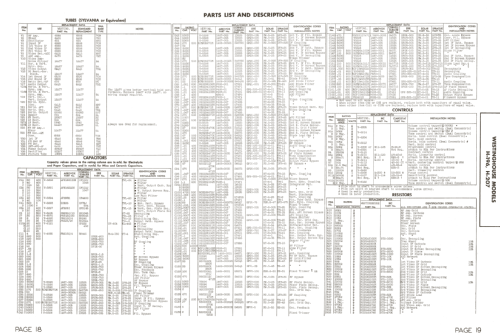

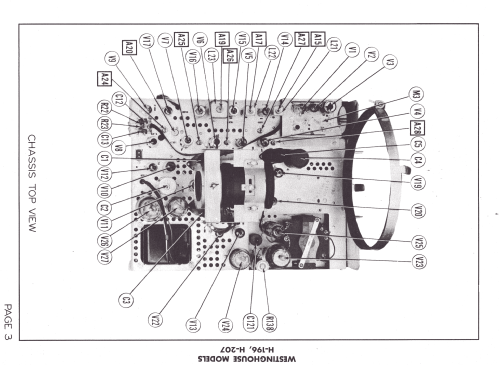

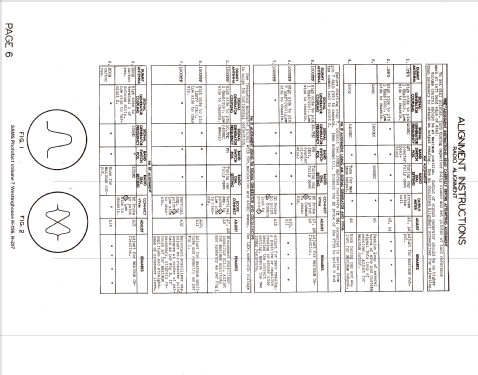

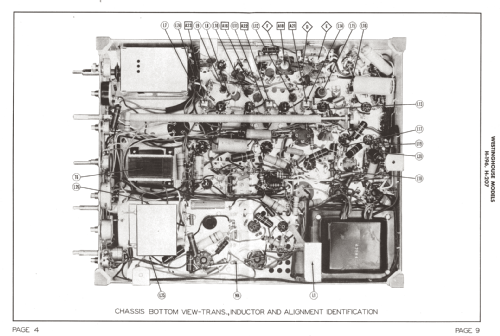

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 36
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 9.5 inch = 24.1 cm
  • Material
  • Wooden case
  • from Radiomuseum.org

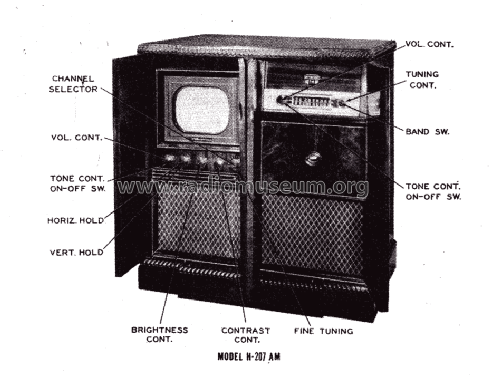

  • Model: H-207 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • FM 88 - 108MHz and AM 540 - 1600kHz. Channels 2 through 13 similar model with radio and phono equipted H-196 2 speakers with 9,5 inch and 1 PM speaker with 5 inch
