For model H-24T121 Ch= V2345-26, Westinghouse El. & Mfg. Co. - see also Canadian W.:
Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name

Westinghouse El. Int.
Year: 1956 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: 4BS8 or 4BQ7A 5AT8 3BZ6 3BZ6 3CB6 6AU8 5BT8 or 5AN8 3BN6 5AQ5 3CS6 or 3BY6 12B4A 7AU7 or 6AU7 12BQ6GTB or 12CU6 12AX4GTA 1B3GT 24DP4A
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles, 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: H-24T121 Ch= V2345-26 - Westinghouse El. & Mfg. Co. -
Shape Tablemodel, with any shape - general.
Notes

The Westinghouse H-24T121 is a 24" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis V-2345-26 and picture tube 24DP4A.

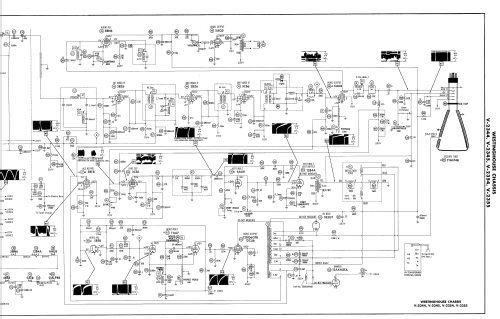

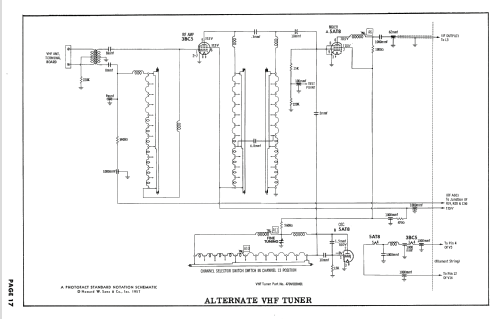

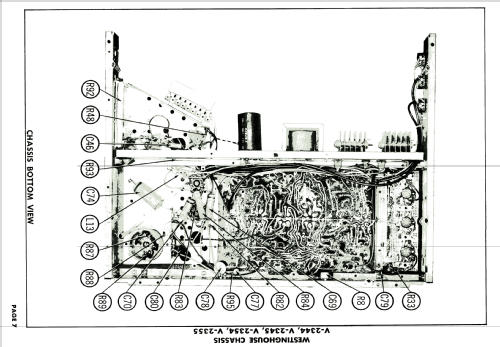

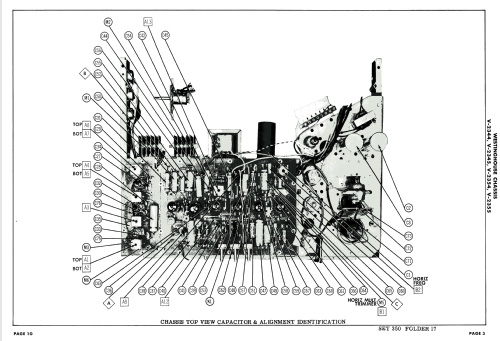

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 350 Folder 17 date 3 - 57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
