• Year
  • 1951 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 354719
    • alternative name: Westinghouse El. Int.

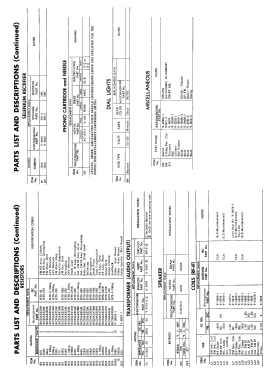

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 105 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: H-328C7U Ch= V-2136-4 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • Westinghouse model H-328C7U is an AC operated combination phono-radio, AM-FM superheterodyne receiver with loop antenna. Selenium Rectifier.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
