H-397T5 Ch= V-2184-2

H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 188945) Radio

H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 984600) Radio

H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 984602) Radio

H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 984603) Radio

H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 984604) Radio
H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 355638) Radio H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 355639) Radio
H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 355640) Radio H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 355641) Radio
H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 800925) Radio H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 1058310) Radio
H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 1058311) Radio H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 1058312) Radio
H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 1058313) Radio
Use red slider bar for more.
H-397T5 Ch= V-2184-2; Westinghouse El. & (ID = 355638) Radio

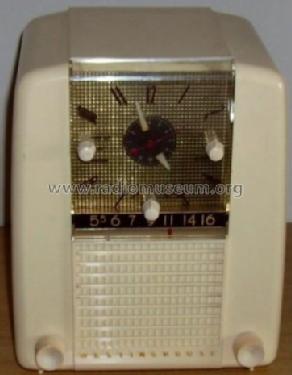

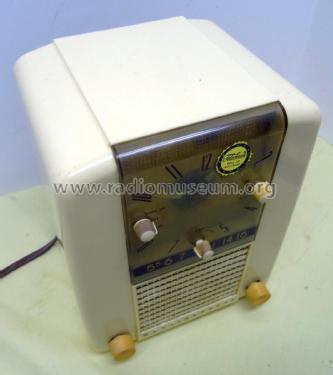

Westinghouse El. &: H-397T5 Ch= V-2184-2 [Radio] ID = 355638 600x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model H-397T5 Ch= V-2184-2, Westinghouse El. & Mfg. Co. - see also Canadian W.

Country:  United States of America (USA)
Manufacturer / Brand:  Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name

Westinghouse El. Int.
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: H-397T5 Ch= V-2184-2 - Westinghouse El. & Mfg. Co. -
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 7.12 x 9 x 6 inch / 181 x 229 x 152 mm
Notes Cabinet color for model H-397T5 is maroon. Model H-398T5 is identical except color is ivory. The chassis for these models is molded plastic with solder terminals mounted on plastic pegs. There is a slide-on plastic chassis bottom cover. The speaker is 4 inches square.
Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Source of data Collector's Guide to Antique Radios (6th edition)
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 14, 1954 (Collector's Guide to Antique Radios, Second Edition; Marty & Sue Bunis; 1992)

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
