H-558P4 Ch= V-2271-1; Westinghouse El. & (ID = 2267642) Radio
Westinghouse El. &: H-558P4 Ch= V-2271-1 [Radio] ID = 2267642 1165x1029
Select picture or schematic to display from thumbnails on the right and click for download.
For model H-558P4 Ch= V-2271-1, Westinghouse El. & Mfg. Co. - see also Canadian W.:
As purchased in 2018.

Country:  United States of America (USA)
Manufacturer / Brand:  Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name

Westinghouse El. Int.
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC/DC 105-120/ 67.5 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: H-558P4 Ch= V-2271-1 - Westinghouse El. & Mfg. Co. -
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes Color=white & sand; Selenium Rectifier.
Source of data Machine Age to Jet Age III

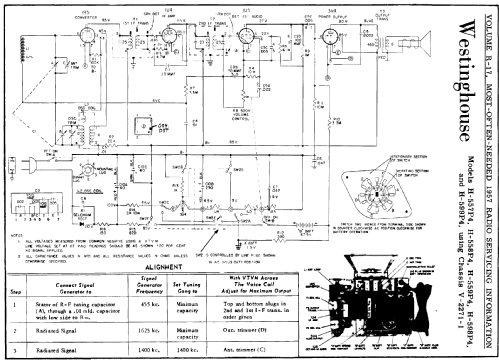

Circuit diagram reference Beitman Radio Diagrams Vol. 17, 1957
Mentioned in Collector's Guide to Antique Radios (6th edition)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 2-57, Set 346, Folder 19)

Model page created by Egon Penker. See "Data change" for further contributors.
