H-55ACS2 Ch=V-2508-04

H-55ACS2 Ch=V-2508-04; Westinghouse El. & (ID = 186274) R-Player

H-55ACS2 Ch=V-2508-04; Westinghouse El. & (ID = 511662) R-Player

H-55ACS2 Ch=V-2508-04; Westinghouse El. & (ID = 511663) R-Player

H-55ACS2 Ch=V-2508-04; Westinghouse El. & (ID = 511664) R-Player

H-55ACS2 Ch=V-2508-04; Westinghouse El. & (ID = 511665) R-Player
Use red slider bar for more.
H-55ACS2 Ch=V-2508-04; Westinghouse El. & (ID = 186274) R-Player
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name

Westinghouse El. Int.
Year: 1960 Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: 50EH5 50EH5 35W4
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker 2 Loudspeakers / Ø 5.25 inch = 13.3 cm
Power out
from Radiomuseum.org Model: H-55ACS2 Ch=V-2508-04 - Westinghouse El. & Mfg. Co. -
Shape Tablemodel, with any shape - general.
Notes stereo

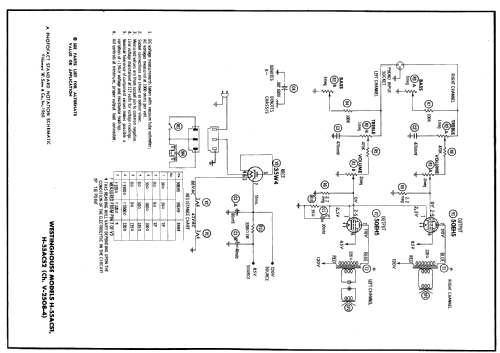

Circuit diagram reference Beitman Radio Diagrams Vol. 20, 1960

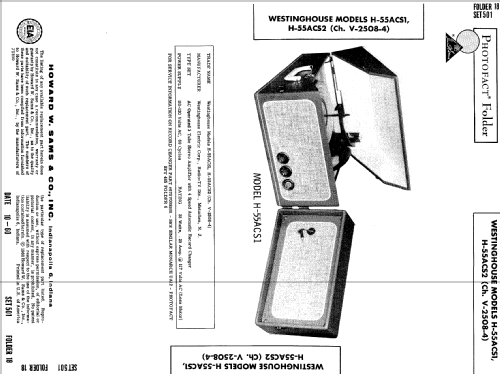

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 10-60, Set 501, Folder 18)

Model page created by Trev Levick. See "Data change" for further contributors.
