• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83501

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 1.5 & 67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: H-562P4A Ch= V-2268-3 - Westinghouse El. & Mfg. Co. -

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Color=tan/brown.

• Source of data
• Machine Age to Jet Age III

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 17, 1957

• Literature/Schematics (1)

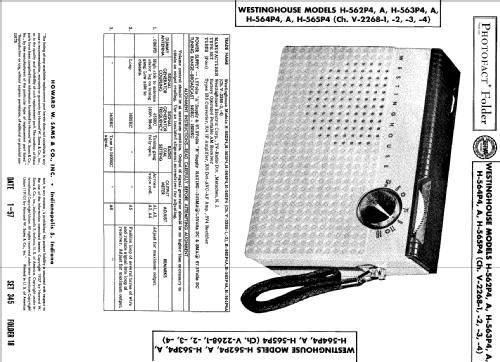

• Photofact Folder, Howard W. SAMS (Date 1-57, Set 345, Folder 18)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
