H-57ACS2 Ch= V-2507-3

H-57ACS2 Ch= V-2507-3; Westinghouse El. & (ID = 186261) R-Player

H-57ACS2 Ch= V-2507-3; Westinghouse El. & (ID = 556376) R-Player

H-57ACS2 Ch= V-2507-3; Westinghouse El. & (ID = 556377) R-Player

H-57ACS2 Ch= V-2507-3; Westinghouse El. & (ID = 556378) R-Player

H-57ACS2 Ch= V-2507-3; Westinghouse El. & (ID = 556379) R-Player
Use red slider bar for more.
H-57ACS2 Ch= V-2507-3; Westinghouse El. & (ID = 186261) R-Player
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name

Westinghouse El. Int.
Year: 1959 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: 7025 or 12AX7 7025 or 12AX7 6BQ5 6BQ5 6CA4
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: H-57ACS2 Ch= V-2507-3 - Westinghouse El. & Mfg. Co. -

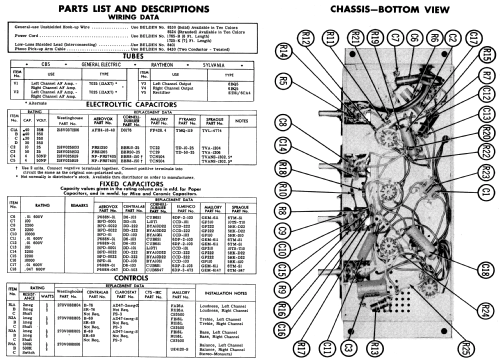

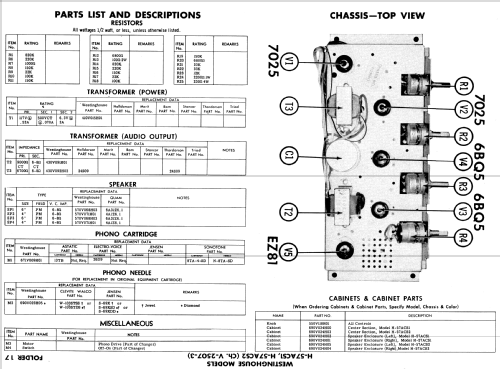

Notes AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 490 folder 17 date 6-60 features the Westinghouse models H-57ACS1 and H-57ACS2 as the same schematic.
Circuit diagram reference Beitman Radio Diagrams Vol. 20, 1960
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 490 folder 17 date 6-60)

Model page created by Trev Levick. See "Data change" for further contributors.
