• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72304

• • alternative name: Westinghouse El. Int.

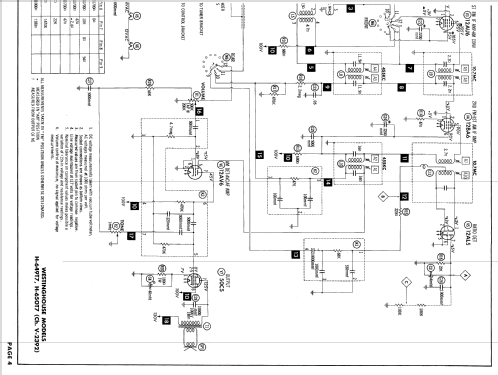

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12BA6 12AT7 12AU6 12BA6 12AL5 12AV6 50C5

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: H-649T7A Ch= V-2392-4 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel, low profile (big size).

• Notes
• Selenium Rectifier

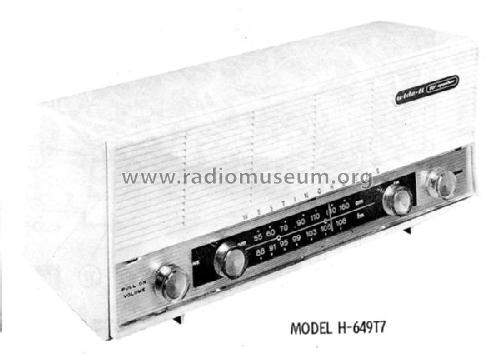

  The Westinghouse Model H-649T7 is an AC operated 7 tube AM-FM Receiver.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 19, 1959

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 1-59, Set 429, Folder 16)

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
