• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84709

• • alternative name: Westinghouse El. Int.

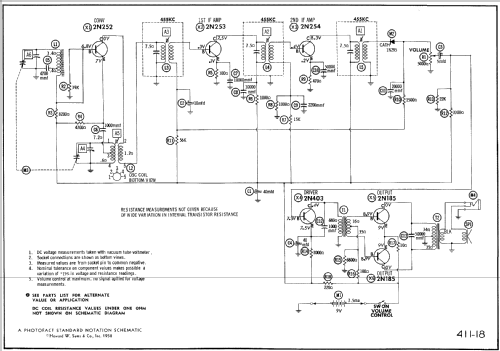

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N252 2N253 2N254 2N185 or. 2N403 2N185 2N185 1N295 or. 1N87G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: H-652P6 Ch= V-2278-4 - Westinghouse El. & Mfg. Co. -

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 6 x 3 x 1.5 inch / 152 x 76 x 38 mm

• Notes

• The following models are identical except for cabinet color.

  Model	Cabinet Color
  H-651P6	Charcoal
  H-652P6	Turquoise
  H-653P6	Off White



• Circuit diagram reference
• Beitman Radio Diagrams Vol. 18, 1958

• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 300)

• Literature/Schematics (1)

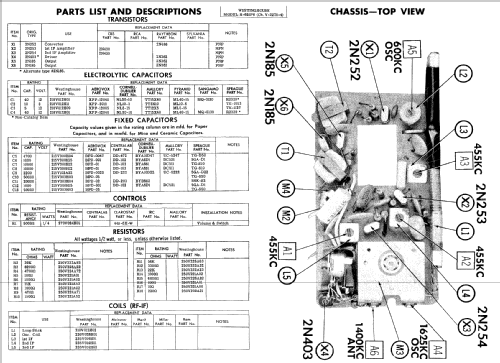

• Photofact Folder, Howard W. SAMS (Date 9-58, Set 411, Folder 18)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
