H-622P6 Ch= V-2296-1

H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 2592470) Radio

H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 2592472) Radio

H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 2592473) Radio

H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 2592474) Radio

H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 140609) Radio
H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 296288) Radio H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 296289) Radio
H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 866337) Radio H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 902472) Radio
H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 1104313) Radio H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 1104314) Radio
H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 1104316) Radio H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 1558723) Radio
H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 1558726) Radio H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 1558729) Radio
Use red slider bar for more.
H-622P6 Ch= V-2296-1; Westinghouse El. & (ID = 296288) Radio
Westinghouse El. &: H-622P6 Ch= V-2296-1 [Radio] ID = 296288 875x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model H-622P6 Ch= V-2296-1, Westinghouse El. & Mfg. Co. - see also Canadian W.

Country:  United States of America (USA)
Manufacturer / Brand:  Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name

Westinghouse El. Int.
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2N252 2N253 2N254 2N238 2N291 2N291
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: H-622P6 Ch= V-2296-1 - Westinghouse El. & Mfg. Co. -
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 238 x 170 x 86 mm / 9.4 x 6.7 x 3.4 inch
Notes

Westinghouse model H-622P6 is a battery operated portable transistorized receiver,  yellow-white color. Unbreakable case , speaker size 15 x 11 cm. Model H-621P6 = same chassis in charcoal color.




Net weight (2.2 lb = 1 kg) 1.270 kg / 2 lb 12.8 oz (2.797 lb)
Circuit diagram reference Beitman Radio Diagrams Vol. 18, 1958
Mentioned in Collector's Guide To TrR1 Bunis trans.94 (1996, page 300)

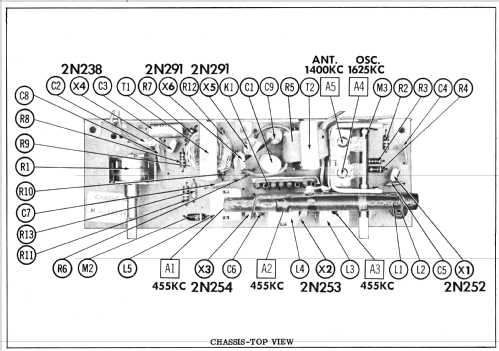

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 396 Folder 14 dated 4-58)
