• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72318

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-120 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 4 inch = 10.2 cm

• from Radiomuseum.org

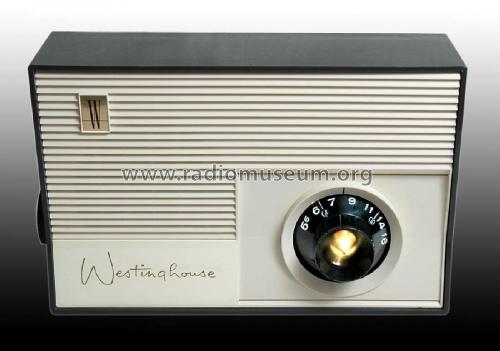

• Model: H-683T5 Ch= V-2395-1 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel, with any shape - general.

• Source of data
• Beitman Radio Diagrams, Vol. 19, 1959

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 6-59, Set 444, Folder 21)

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
