H-689T16 Ch= V-2214-1

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Westinghouse El. & Mfg. Co. - see also Canadian W.

Year
1952 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
217361

- alternative name: Westinghouse El. Int.

Schematics

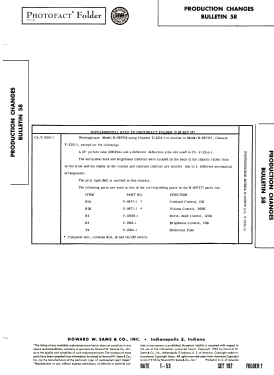

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 3135442) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217565) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217566) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217567) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217568) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217569) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217570) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217571) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217572) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217573) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217574) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217575) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217576) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217577) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217578) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217579) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217580) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217581) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217582) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217583) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217584) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217585) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217586) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217587) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217588) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1217589) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (3)

H-689T16 Ch= V-2214-1; Westinghouse El. & (ID = 1216318) Television — Westinghouse El. & H-689T16 Ch= V-2214-1 (2)
Picture from Westinghouse datasheet

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
22

Valves / Tubes
6AK5 6X8 6CB6 6CB6 6CB6 6AH6 6AU6 6AU6 6T8 6W6GT 6AU6 12AT7 12BH7 6SN7GT 6C4 6AL5 12AU7 6AU5GT 6W4GT 1B3GT 5U4G 16AEP4

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

Power out
1.5 W (unknown quality)

from Radiomuseum.org
Model: H-689T16 Ch= V-2214-1 - Westinghouse El. & Mfg. Co. -

Shape
Tablemodel, high profile (upright - NOT Cathedral nor decorative).

Notes
The Westinghouse H-689T16 is a 16" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis V-2214-1 and picture tube 16AEP4. For service information on this model, refer to Westinghouse model H-678K17 service notes and supplementary information. Most information given for the V-2216-1 chassis applies to the V-2214-1 chassis. The shafts of the volume and picture controls are shorter in the V-2216-1 chassis, the horizontal hold and brightness controls are located on the back of the chassis instead of the front, the picture tube used is a 16" CRT and uses a different CRT strap.

Literature/Schematics (1)
- - Manufacturers Literature (Westinghouse Datasheets RM3266 RM3264 RM3275 RM3301)

Literature/Schematics (2)
Photofact Folder, Howard W. SAMS (Set 192, folder 1, dated 1-53)

Author
Model page created by John Kusching. See "Data change" for further contributors.
